1．Main Technical Parameter：
|
Forming Area: |
650mm x 320 mm |
|
Forming Depth(Max)
(If need more height, it can order) |
120mm |
|
Sheet thickness: |
0.3-1.2mm |
|
Sheet width(max): |
650mm |
|
Forming Speed: |
25-35 die times/min |
|
Adjustable Travel: |
100mm-350mm |
|
Feeding Motor: |
1.5kw |
|
Rated Power: |
80kw |
|
Actual Power: |
55kw |
|
Compressed Air: |
About 0.6-0.8pa/1.6M3 |
|
Water Supply: |
About 0.5M3/H |
|
Overall Dimension(mm): |
about L3250×W1450×H2670 |
|
Weight: |
About 3.0T |
2.Application area：

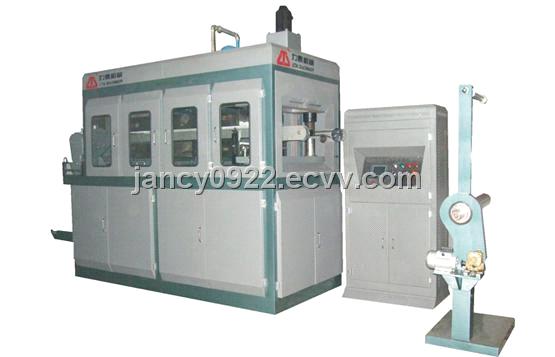

The machine can produce plastic packs like disposable plastic cups, plastic bowls, ice cream cups, cold drinking cups, yoghurt cups, fast-food boxes, bowls for convenience noodles etc. It is applied to all kinds of sheets such as PP, PVC, PS, PET, etc.
3. Characters:
1) Adopts hydraulic transmission mechanism and PLC controller, and four cell guides position fixing.
2) Mechanism movement adds automaticlly oil to lubricate at certain times.
3) Servo motor drawing sheet.
4) Mould movement adopts hydraulic pressure drive.
5) Stable operation and reliable performance, low noise, high quality.
6) It can produce different products by different moulds.
7) It can finish production in one cycle through sheet feeding, heating,
