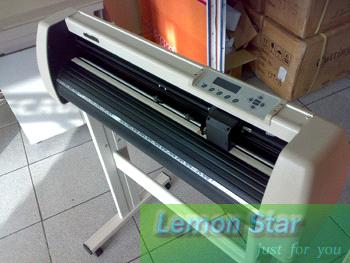

USB vinyl cutting plotter

Detailed Product Description

Standard Features:

1) Forward direction and reverse direction paper feed

2) Emergency stop and free setting original point

3) Maximum speed: 800mm/s

4) Cutter speed and cutter pressure memory and storage

5) Double photoelectric reset and without any collision

6) Perfect output and without any saw tooth at high speed

7) Using the most advance subdivision circuit and having low noise

8) Optional sound alarm system

9) Using switching power supply and its operation that isn't influenced by voltage change

10) environmentalist design can working long time

Model	AK720	AK870	AK1100	AK1350
Max.paper width	720mm	870mm	1100mm	1350mm
Max.plotting width	630mm	780mm	1000mm	1260mm
N.W/G.W	11/20KG	13/23KG	15/27KG	17/32KG
Size（mm）	960350430	1110350430	1340350430	1590350430
Stand	Optional	Yes	Yes	Yes
Operation environment	Temperature: 5^oC-35^oC Relative humidity:(30%-50%)Without condensation
Interface	USB, Serial (COM)and Parallel(LPT)
Cutting tool	Imported hardness alloy steel blade
Language format	DMPL/HPGL
Power supply	AC90V-AC260V
Speciality	Cutting blade soft landing ,protect blade Origin point setup free Negative pressure Adsorption
Software	Artcut
Remark	We will send you 3pcs original steel blade for free.
