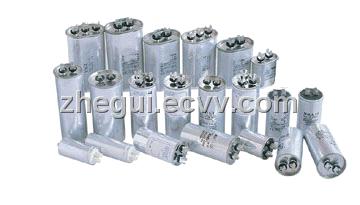

CBB65 Aluminium Electrlytic Capacitors Series

The capacitor takes heavy-edge metallized Al/Zn PP film or web-like safety film as dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.Applications: Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.Technical Specifications:Standard:IEC 60252-1:2001Technical features:Climate type:40/70/21Capacitance tolerance±5%I.R:>=3000SDielectric dissipation factor:tg<=0.002 (50Hz~100Hz)Application requirements:Altitude:<=2000mResidual voltage while loading: less than 10% of rated voltage.Allowed maximum voltage: less than 1.1 times of rated voltagePermissible maximum current: less than 1.3 times of rated current.Dimensional specification (mm)

Post Date:	10/7/2008
Expiry Date:	10/2/2009
FOB Price:	RMB5-20ningbo
