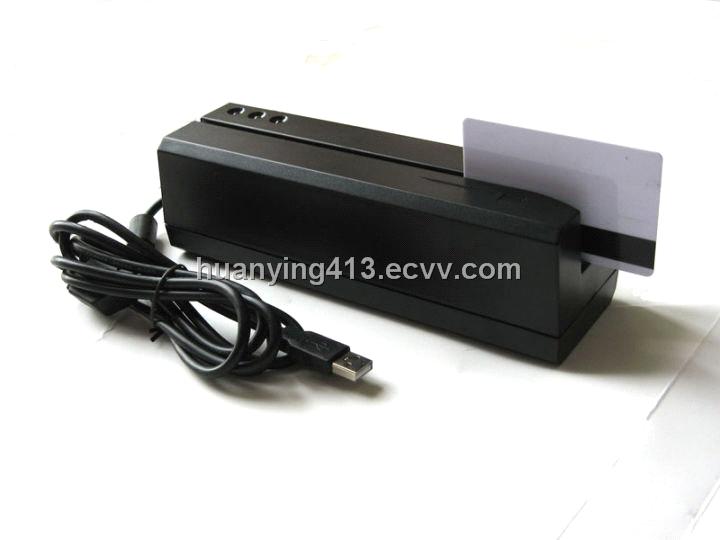

This New Product is 100% Compatible with MSR206 perfectly
It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR606 reader/writer.
And this machine is exported to World wilde.
Features
Reading/Writing magnetic stripe card complied with ISO formats
Reading/Writing Drivers Licenses
Read/Write High & Low Coercive (300~4000Oe)
High/Low Coercivity encoding circuitry selectable on screen
Program software for Windows 98/Me/XP
Programming software for various read/write performance
Sequential write function, up to 12 digits (1 up)
Manual Swipe to read and/or write card with RS-232 /USB output
Writing and verifying data on single, dual, or triple track in one swipe
+24VDC, 2.5A Max external power adapter attached ,Smaller than others
Dimensions of 212(L) x 64(W) x 63(H) mm ,Smaller than others
Dimensions of Box 290(L) x 180(W) x 100(H) mm
Specification
Electrical
Power requirements +24VDC +/- 5%
Consumption Typical 350mA Max. 600mA plus for each writing track
Power supply External switching power 24V/2.5A
Communication Standard RS232 or USB with USB-to-RS232
Ripple 50mVp-p or less
Dielectric strength 500 VDC for 1 minute
Rate
CE ,FCC, UL,ULC
Performance
Read card Track1 Track2 Track3
Bit per density 210 bpi 75/210bpi 210 bpi
Coercive force Read/write 300-4000 oe Mag.card
Card thickness 0.76-1.2mm
Read speed STD card Jitter +/-15% Amp. 60%
5-55ips 5-50ips 5-50ips
Write speed 5-30ips
Write jitter Interval < +/- 10%, Sub-interval < +/- 12%
Error rate Read < 0.5%
Write < 0.8%
Head life Min. 1000K swipes for both read/write head
Package including
MSR606
Software
Power adaptor
USB cable
English Manual
Test Magnetic Card
