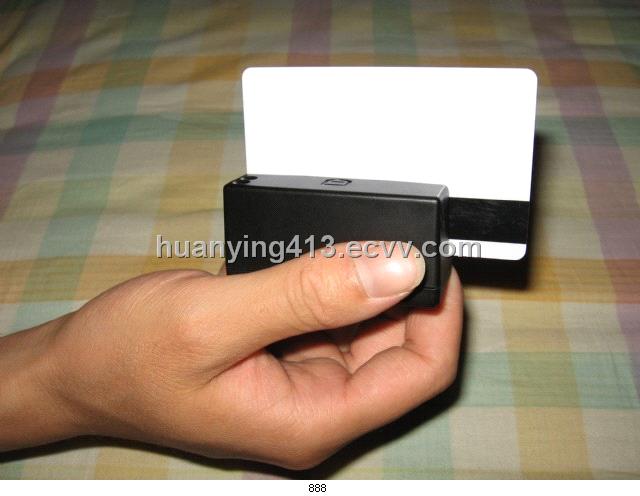

Mini123Mx is a very Small Portable Data Collector .
It's a battery-powered portable magnetic swipe reader,
which is specially designed for magnetic stripe data collection anytime and anywhere without computer.
All datas it collected can transfer to computer and write to other white magnetic cards through writer device ,
for example , MSR206 reader/writer
Features
512 K bytes memory for storing 3000 data
3-track version can collect all three tracks data
Time stamp shows date and time with every transaction
Password Protection defends user
Auto Power Off is set by user
Data downloadable to the computer via USB
Battery powered and low battery indicated
Read ISO format and special format are available upon request
No programming required, easy to use as 1- 2- 3
Applications
Any movable data collection (Trade shows, Racing events)
Point of sales (Credit card data collection)
Law enforcement (DMV card)
Attendance (Student ID, Membership card)
Specifications
ISO Standard
Track 1 210 bpi, 79 Alphanumeric Characters
Track 2 75 bpi, 40 Numeric characters
Track 3 210 bpi, 107 Numeric characters
Electrical
Memory size 512K stores up to 3000 records
Interface USB
Battery Power 3.7v 220 mAH Rechargeable Battery
Environment
Working Temp 0~55 Deg. C
Storage Temp -10~55 Deg C
Humidity 10~90% Relative
Physical
Dimensions ( L 6.5 x W 2.7 x H3.1 cm )
Net Weight 2.5 oz
Package including
- MSR600M
- Software
- Power adaptor
- USB cable
- English Manual
Shiping free
