Guangzhou Huatian Glass Machinery Co., Ltd.

HSP Series Glass Sandblasting Machine

Detailed Product Description

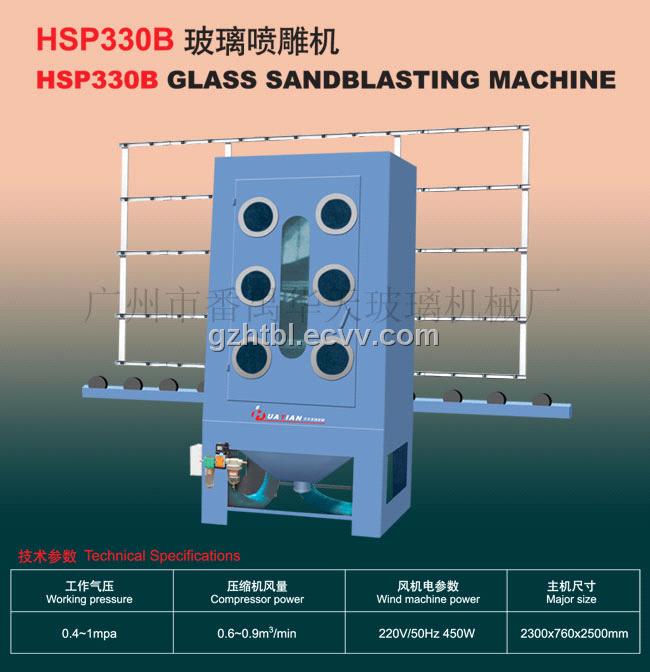

HSP330B (Manual)
This machine is suitable for sandblasting the surface of glass, metal and ceramics etc with different designs and characters. It makes processed articles form stereo designs or become colorful carved craftworks with color and paint. This machine is highly efficient, easy to operate and repair.

Technical Specifications:
  1. Max processing depth: 3mm
  2. Working pressure: 0.4 ~ 1mpa
  3. Compressor power : 0.6 ~0.9m3/min
  4. Wind machine power: 220V/50Hz, 450W
  5. Size: 2300 (L)x 760(W) x 2500(H)mm


HSP1500P (Automatic/Manual)
This machine is suitable for sandblasting the surface of flat glass with different size and thickness. The spray gun movement and glass delivery are adjusted by stepping motor, which has the advantage of rapid speed, high precision, steady movement and so on. It adopts PLC programmable controller for automatic controlling and LCD touch-screen. As long as set the parameter size of processed glass by the LCD touch-screen, the glass will be automatically putted into the workroom. The entire work does not need manual intervention, easy operation and very convenient. It also provides manual control.

Technical Specifications:
  1. Processing dimensions: MIN: 200×500mm    MAX: 1500×2000mm
  2. Processing thickness: 3~25mm
  3. Spray gun travelling speed: 0.5~12 m/min
  4. Sand spraying speed: 10~15 m2/h
  5. Working pressure: 0.8Mpa
  6. Air compressor power: >12KW  (>1.5m3/min)
  7. Power: 3.6KW
  8. Size: 6100(L)×2000(W)×2500(H) mm
