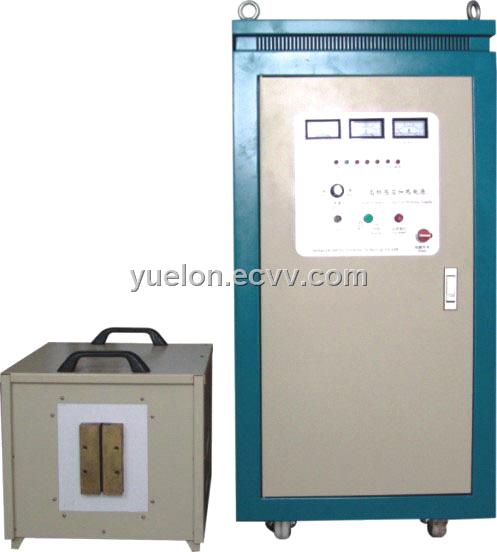

high frequency induction heating machine 160KW

Main specification:

1.       Model: HF-160AB

2.       Maximum input power: 160KW

3.       Oscillating frequency:  10-25KHZ

4.       Work power: 380V, 3 phase, 50 or 60HZ

5.       Maximum input current:  350A

6.       Duty cycle: 100%

7.       Cooling water flow/pressure:  89L/Min  0.1Mpa.

8.       Water temperature protection point: 45oC

9.       Auto heating time, retaining time: 0.1-99.9Second

10.   Weight and size:

Model:              N.W./ G.W.(kg)   Size (L xW xH)     packing size

HF-160AB controller   152kg/160kg    650x600x1380mm   750x700x1480mm

HF-160AB transformer  110kg/118kg    650x600x600mm    750x700x700mm
