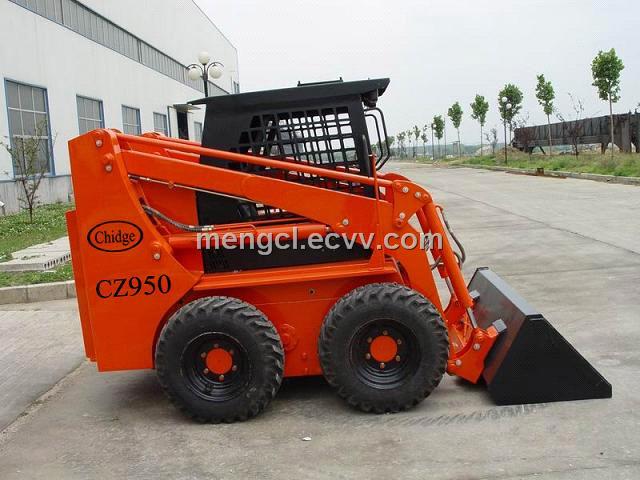

Skid steer loader

Detailed Product Description

Model CZ750 CZ850 CZ950
Engine
Model 495BPG A498BPG 1004-4Z22
Type Direct Injection,Inline,Water-cooled,4cycle
Displacement 2.97L 3.17L 3.99L
Rated Power/Speed 42/2650 kw/r/min 45/2500 kw/r/min 56/2400 kw/r/min
Tansmission
Type Hydrostatic close circuit
Pumps 2 X Variable displacement poiston pump
Motors 2 X Radial piston motor
Tyre 10.0/7-15.3 12-16.5NHS 12-16.5NHS
Working System
Max Flow-auxiliary Hydraulic 65L 65L 71.5L
Max Pressure-auxiliary Hydraulic 16Mpa 16Mpa 16Mpa
Performance
Operating Load 750kg 850kg 950kg
Tipping Load 1500kg 1700kg 1900kg
Bucket Break-out Force 2000kg 2200kg 2300kg
Max Tilt Angle 15° 15° 15°
Max Travel 11.3km/h 12km/h 12km/h
Bucket Capacity 0.4-0.5m3 0.4-0.5m3 0.5-0.6m3
Operating Weight 2800kg 2900kg 2960kg
Bucket Size(L X W X H) 1680mmX835mmX520mm 1800mmX835mmX520mm 1800mmX835mmX520mm
