Magic power vehicle Co.,Ltd

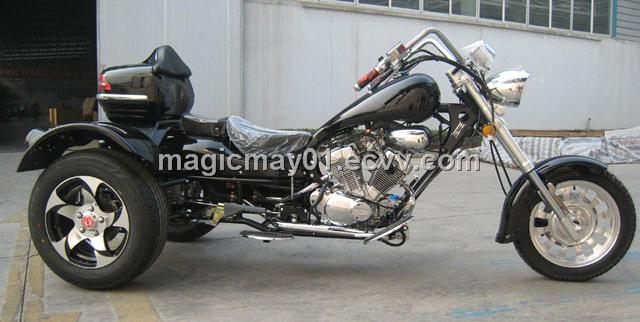

Trike chopper M1-250-05

Trike chopper M1-250-05

Detailed Product Description

Vehicle Type	V250
Engine Type	V-Twin cylinder
Transmission System	Chain driving
Bore x Stroke (mm)	49*66
Piston Displacement (cc)	248.9
Compression Ratio	10:01
Maximum Power (kw/r/min)	12kw/8400r/min
Maximum Torque (N.m./rpm)	17.5N.m/6000r
Starter System	electric start
Lubrication	SAE15W/40-SF
Overall Length (mm)	2860
Overall Width (mm)	1220
Overall Hight (mm)	1280
Wheel Base (mm)	2200
Min. Turning Radius (m)	≤3.5
Ground Clearance (mm)	175
Rider Capacity	2
Brake (Front/Rear)	Disc brake
Tyre, Front	110/90-16
Tyre, Rear	195/155 R15
Ignition Type	CDI
Tank Volume(L)	17L
Climb Capacity(°)	45°
Front Suspension	reverse suspension
Rear Suspension	spring
Max. Speed (km/h)	110
Battery	12V/14A
cooling system	cooling
carburetor	mikuni/BDS26
clutch	wet multi-plate
low gear ratio	0.821
hight gear ratio	2.642
G.W	296KGS
N.W	246KGS
loading	20':8pcs 40':18pcs 40HQ :27pcs
Packing size(mm)	22551255785
