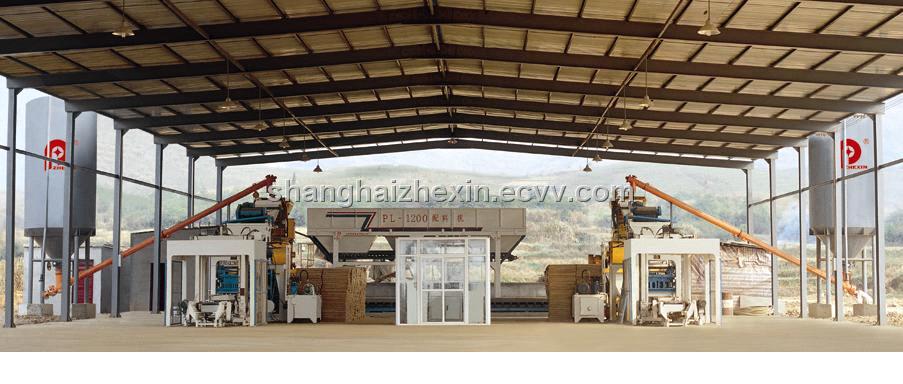

Sell Semi-auto Block Making machine Production Line
With the batching plant adopted, accurately matched raw materials can be send to mixer, thus guarantee the sand, scree, cement ratio of concrete, to meet the requirement of the block, such as weight, intensity etc.
Besides the machines bought from our company, customer needs to prepare one overloader(loading capacity capacity: about 1.5 m3), one cement silo(loading capacity: about 80 tons), two forklifts(loading capacity: about 3 tons) by himself, then he can produce blocks. The installation, commission and personnel training needs about 5 weeks. All PLC controlling equipments will be provided by our company. Main Data:
Item
Machine Type
PX-QM5
PX-QT6
PX-QT8
PX-QT9
Total Power
99.2kw
102.2kw
116.05kw
125.7kw
Total Factory Area
6200 m2
6500 m2
7000 m2
Including raw material storage area, workshop of equipments, curing area, block storage area, and living area for workers
Output
390*190*190mm
400*200*200mm
8 inch block
12,000 pcs/shift
50,700 m3/year
(300 days)
11,500 pcs/shift
48,600 m3/year
14,400 pcs/shift
60,800 m3/year
17,200 pcs/shift
72,600 m3/year
240*115*90mm
8-hole block
28,800 pcs/shift
21,500 m3/year
38,600 pcs/shift
28,800 m3/year
48,000 pcs/shift
35,900 m3/year
