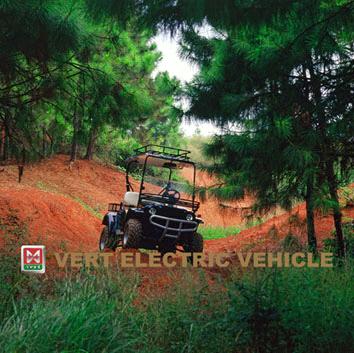

PROVIDE 4WD HUNTING VEHICLE

Detailed Product Description

ELECTRIC SPEC

ELECTRIC 4WD
Dimensions
Overall Length		251 cm
Overall Width		146 cm
Overall Height(with canopy)		191 cm (top of sun canopy)
Wheelbase		167 cm
Front Wheel Track		115 cm
Rear Wheel Track		118 cm
Min.Ground Clearance		20 cm
Power
Power Source		48-volt DC
Horsepower (kW)		4.8 kW
Electric System		48-volt
Batteries (quantity/type)		6*8-volt/145 AH (TROJAN T-875)
Key or Pedal Start		Pedal start
Battery Charger		110 V/220V
Charging Interval		8-10 hours
Drive Train		4WD/2WD transferable (with external electromagnetic clutch)
Gear Selection		Forward-neutral-reverse
Performance
Seating Capacity	2-person
Curb Weight	740 kg
Vehicle Load Capacity	350 kg
Min. Turning Radius	4.2 m
Max. Ground Speed (level ground)	42 kph
Max. Range	60 km
Climbing Ability	30%
Wading Depth	15 cm
Steering & Suspension
Front Suspension	Macphersan independent suspension with double-action hydraulic shock absorbers
Rear Suspension	Macphersan independent suspension with double-action hydraulic shock absorbers
Brake	Four-wheel hydraulic disc brakes
Front Tires	25 x 10-12
Rear Tires	25 x 10-12
Shipping Information
40' HQ	21 pcs
Others
Chassis	Organic integration of automobile parts and electric vehicle components
Remark
The vehicle can be used for hunting, sport utility, leisure and so on. The body appearance and specifications can be modified in accordance with the clients' requirements.
