a. High system gains
b. Full duplex and double-end design, external power supply, and convenient installation
c. ALC technology with auto-steady function adopted.
d. Provide power indication and uplink and downlink indications.
e. With the amplified linear power, the intermodulation and spuriousness are suppressed effectively.
Electrical Specifications

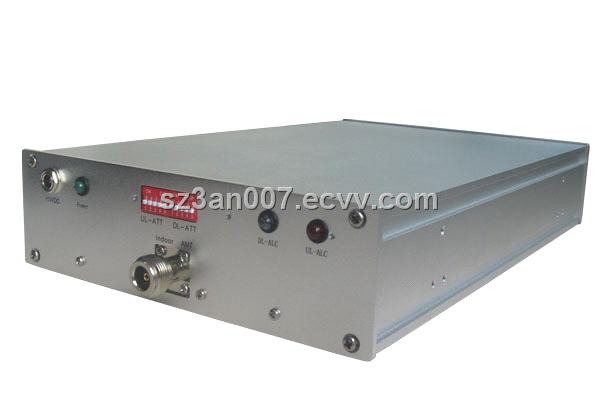

Type : SR-D90/27 SR-D90/30
Frequency range: DL: 1805-1880MHz UL: 1710-1785MHz
Gain : 90 dB
Power : 27 dBm 30 dBm
ALC : ≥20 dBm
ATT : 0-31 dB，1dB
Gain Flatness: ≤6 dB
Noise Figure : ≤6 dB
I/O Return Loss : ≤-10 dB
Time Delay : ≤500 nS
Spurious Emission: 9KHz-1GHz ≤-36 dBm@3KHz 1GHz-12.75GHz ≤-36 dBm@3KHz
LED Indication: Power supply：normal (green)；UL：high Power(Red)；
DL: high Power (Orange) / Po-10dB (green)
Power supply : Input AC：100V-240V
Mechanical Specifications
Body/ Packing size: 270×180×50 / 350×320×130(mm)
Net/Gross weight : 3kg / 4kg
Color: Silver
Other: Power supply adapter, Specification
Optional: Yagi Antenna, Indoor Antenna, Splitter, Cable and Connector etc.
