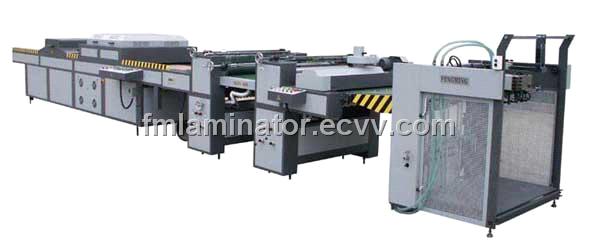

SGUV-1000/1200 UV Coating Machine

SGUV-1000/1200A UV automatic coating machine has experienced technical upgrades based on the original three-roller coating machine. With frequency conversion control adopted for metering roll, oiling volumes for papers of different thickness can be controlled through different linear veldt, straightforward and easy to operate, and it achieves fundamental changes in the surface fineness and smoothness of coating products without orange peel veins by and large, thus optimize polishing products.

Model Max.sheet size Min.sheet size Max coating width Paper thickness Max.feeder speed Dimension Total weight Total power UV 1200A Coating Machine 780×1092mm 340×420mm 1150mm 80-600g/m 2(equipped with wind-knife)200-600g/m 2 800(sheets/hour)4000sheets/hour)for thin paper 12000×1960×1600mm 5500kg 65kw UV1000A Coating Machine 590×882mm 340×420mm 950mm 80-600g/m 2(equipped with wind-knife)200-600g/m 2 8000 sheets/hour 4000sheefs/hour for thin paper 12000×1760×1600mm 5000kg 65kw Note: the maximum paper feeding speed is fit for paper of 787×540mm
