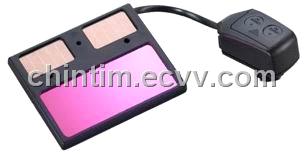

Auto Darkening Filter

Detailed Product Description

Frame Size 110*90*8.4 mm (4.33”*3.54”* 0.33”)

Viewing Area 96*46 mm (3.79” *1.81”)

Range of UV/IR protection up to shade DIN 14 at all time

Light Shade DIN 4

Dark Shade from DIN 9 to DIN 13

Power on/off Automatic

Switching Time (light to dark) 1/20.000s

Switching Time(dark to light) 0.05-1.2s potentiometer adjust

Sensitivity pentiontiometer adjust, adapt to TIG,MIG

Power Supply Solar cell and two 3V lithium batteries

Operating Temperature -5℃~＋55℃

Storage Temperature -10℃~＋70℃

Weight 0.1284kgs

Material ABS

Packing methods:

60 pcs of filters packed in one carton.

N/G weight:7.704/10.02kgs

Size of carton:490mm×370mm×230mm
