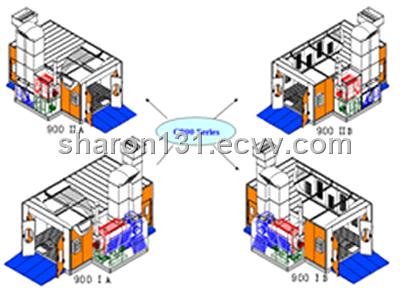

sell spray booth

Detailed Product Description

Description

Glass–wool Insulated with wall panels

Raised metal base, complete grating floor.

With metal floor load 800 kg / wheel

Direct Drive turbo fan/centrifugal fan for Intake and Extract

Upper inclined/side wall panel lights

Indirect stainless steel heat exchanger

Control panel is designed according to CE&ETL standard, all components are from world famous manufacturers, such as Siemens.

parameter

Outside Dimensions: 7120(L) ×5420(W) ×3350(H)mm / 7120(L) ×5670(W) ×3350(H)mm

Inside Dimensions: 7000(L)×4000(W) ×2650(H)mm

Entrance Doors: 3000(W) ×2600(H)mm

Personnel Door: 800(W) ×2000(H)mm

Blower capacity: 25,000m³/h

Working temperature: 60^oC -80^oC

Heat Burner: RL 28 oil burner from Riello, Italy.

Filter system: 4 kinds of filters, finely manufactured from “Filtrair” Holland.

Other Price Terms:

CIF, EXW
