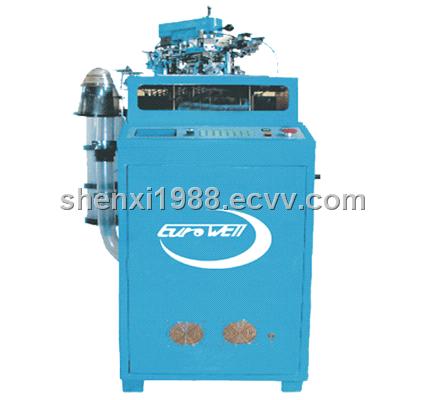

sock knitting machine

Detailed Product Description

Model
EW-415
EW-516
Cylinder Diameter
3 1/2”    3 3/4”
Needle Counts
84N-240N  /  132N-176N
Knitting Feed
1
1
Motif  Feed
4
5
Color In Same Course
5
6
R.P.M
330-380(MAX.40)250-270
Control Box
0.8KW
Gross Weight
440KG
Packing Dimension
1150mm*1050mm*1750mm

Main Features:
1.      One main feed plus five pattern feeds
2.      Possibility of 13 color plus ground or the same course
3.      Drum-less fully electronic control system
4.      Exclusive inner cam block system for high speed
5.      Stepping motor for elastic yarn and stitch cam control
6.      Electro-pneumatic yarn finger and cam control
7.      Pattern depth up to 1,200 courses
8.      Multiple stop motion sensors in case of error
9.      Automatic re-cycling oiled, counter and reset function
10. Attached floppy disk driven (Compatible with MS-DOS and Windows)
11. Available in 220/380/415V. 3phase 50/60Hz
12. Fully A.C servo motor adopted
13. Minimized and easy operating function
14. Battery back-up to protect stored program
15. Internal UPS can support continuous knitting
16. Graphic type LCD adapted
FOB Price:USD5000-5300shanghai
