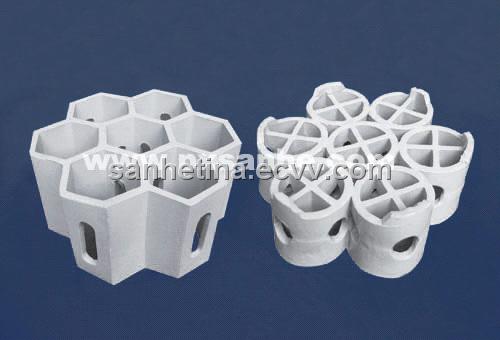

New High-efficiency Structured Ceramic Packing

This series of structured ceramic packing are new type high efficiency packing that developed coordinately according to actual requirement of design institute and users. They are widely applied in the tower of coking desulfurizing, benzene scrubbing, naphthalene scrubbing, ammonia scrubbing and chemical fertilizer hot water saturation tower, electric power plant wet cooling tower. This series of packing is an ideal tower packing with advantages of large surface area, high void ratio, large mass transfer coefficient, anti-block, corrosion resistance, sudden cold/hot resistance as well as easy installation. We can produce light or heavy ceramic packing according to users’ different requirement on materials, and meet the developing market demand.

Product name	Type	Relative edge mm	Heaping void mm	Pore iameter mm	Specific surface area m2/m3	Void ％	Heaping specific Kg/m3	Heaping number m/m3
Seven-hole connecting ring	DT-1	220±2.5	20	65	118	85	280	200
Ribbed Seven-hole ring	DT-2	220±2.5	20	65	128	75	320	200
Six-water caltrop ring	DT一3	220±2.5	20	65	135	72	340	200
Ribbed six-water caltrop ring	DT-4	220±2.5	20	65	132	75	300	200
Swiveling multitooth ring	DT-5	220±2.5	20	65	148	73	348	200
Swiveling ring	DT-6	220±2.5	20	65	125	72	320	200
