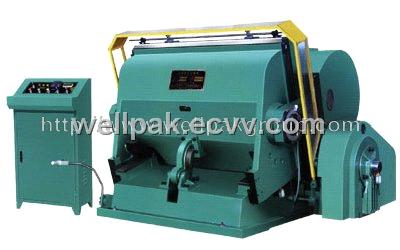

Creasing Die-Cutting Machine

Detailed Product Description

screen.width-500)this.style.width=screen.width-500;">

Feature:

Sliding bearing employed cast copper alloy steel and so less wear off and less shaking.
Fly wheel has a big moment and greater cutting annd pressing force.
Machine body is made of top cast iron and so high intensity and good rigidity.
single disc clutch and agile and reliable.
It has 3 functions: single sheet, continuous and delayed opening. The delay time is adjustable.
Operation height is reasonable. Pressing frame's open angle is big.
Safety protection system is reliable.

Key technical parameter:

Model	Valid area	Speed	Max knife length	Motor power	Weight	Dimensions L/W/H
ML2200	2200x1400mm	16+/-2 s/m	<64m	15kw	22000kg	2530x3400x2300mm
ML2000	2000x1400mm	16+/-2 s/m	<58m	15kw	16500kg	2270x3100x2150mm
ML1800A	1800x1400mm	16+/-2 s/m	<52m	11kw	13500kg	2240x2800x2130mm
ML1600	1600x1200mm	16+/-2 s/m	<43m	7.5kw	11500kg	2170x2560x2230mm
ML1500A	1500x1100mm	17+/-2 s/m	<40m	7.5kw	8200kg	2010x2480x1960mm
ML1500	1500x1050mm	17+/-2 s/m	<40m	7.5kw	8000kg	2010x2400x1930mm
ML1400	1400x1000mm	17+/-2 s/m	<38m	5.5kw	7200kg	2010x2400x1930mm
ML1300	1300x920mm	18+/-2 s/m	<38m	5.5kw	6500kg	1920x2140x1800mm
ML1200	1200x850mm	18+/-2 s/m	<32m	4kw	4800kg	2000x2000x2000mm
ML1100	1100x800mm	20+/-2 s/m	<30m	4kw	4500kg	1900x1780x1700mm
ML720	750x520mm	25+/-2 s/m	<15m	2.2kw	1700kg	1260x1350x1280mm
PYQ203C	930x670mm	23+/-2 s/m	<25m	4kw	3000kg	1670x1670x1630mm
