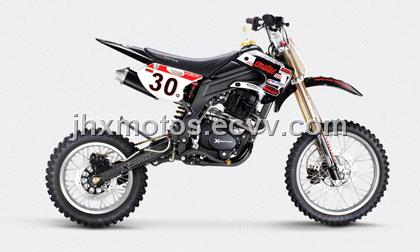

EEC Dirt Bikes,motorcycles

XB-30
description:
Engine Type: 150cc / 200cc / 250cc, 4-Stroke, Single cylinder, Air cooled
Bore & Stroke: 67 x 65 mm (250cc)
               63. 5 x 62. 2 mm (200cc)
               62 x 49. 5mm  (150cc)
Starter: Kick Start or Kick + Electric ( 150cc )                                                                       Kick + Electric Start (200cc)                                                                                 Kick + Electric Start (250cc)
Compression Ratio: 9.2:1
Transmission: 5-Speed, International Shifter
Final Drive :Chain #428
Max Power: 9.3Kw / 8500rpm(1±5%) (150cc)                                                                                10.8Kw / 8000rpm ( 200cc)                                                                                     11.5Kw / 6500rpm  (250cc)
Front shock: Inverted Hydraulic Adjustable Shock
Rear shock : Adjustable Air / Oil Shock Absorber
Brakes: Front & Rear Hydraulic Disk
Seat Height :14"/12":790mm                                                                                                 17"/14":840mm
Wheel base :14"/12":1270mm                                                                                                17"/14":1320mm
Ground Clearance :14"/12":230mm                                                                                                 17"/14":260mm
Front & Rear wheel :1)F:60/100-14";  R:80/100-12"                                                                                 2)F: 2.5-17";   R:3.00-14"
Engine and Rear Sprocket:12"/14":16/43 teeth ;                                                                                         14"/17":15/48 teeth
Length / Width / Height:14"/12":1750 x 750 x 1020mm                                                                                   17"/14":1850 x 750 x 1090mm
Package Size L / W / H :14"/12":1540 x 430 x 755 mm                                                                                   17"/14":1670 x 430 x 755 mm
Tank Capacity :3ltr.
G.W. / N.W. :104.5kg / 82.3kg
Colors: Black, Red, Green, Blue, Yellow, Carbon Block, Orange
