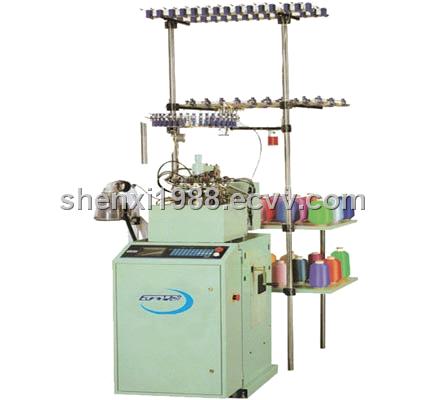

Computerized single cylinder sock knitting machine (EW-628)

Model: EW-628
Cylinder Diameter: 3 3/4"
Needle Counts: 72N-240N
Knitting Feed: 2
Motif  Feed: 6
Color In Same Course: 7
R.P.M: MAX.400
Power Required: 2.5KW
Gross Weight: 500KG
Packing Dimension: 1150mm*1050mm*1750mm

Main Feature:

1. Drum-less fully computer controlled driven by brushless servo-motor
2. Equipped with an internal 3.5cm disk and USB for easier data reading and storing
3. High speed piano electric ceramic actuators with eight selectors
4. Option of up to 2 main feeds + 6 feeds (16 colors)
5. Pneumatically controlled yarn fingers
6. Variable elastic feeding, controlled by elastic stepping motor for varying course size on the same sock
7. Automatic lubrication using microcomputer controlled oiler
8. LCD allows the operator to easily keep track of knitting condition including: error message, stopping signals, production quantities, and speed. Language available include Chinese, English
9. Stitch size, speed, course length, size, quantity, chain steps, pattern etc, can be controlled and altered using the control box
10. 2MB memory on each CPU allows for more pattern, size, and program storage
11. Auto-testing error sensors and self-protection system

Graphic design system-styled

1. New graphic design system. Easy to use, learn, understand,   and equipped with powerful tools
2. Windows 95/98NT2000/ME/XP compatible
3. PIC and BMP format both acceptable
4. Installable on any personal computer with the operating system described above
