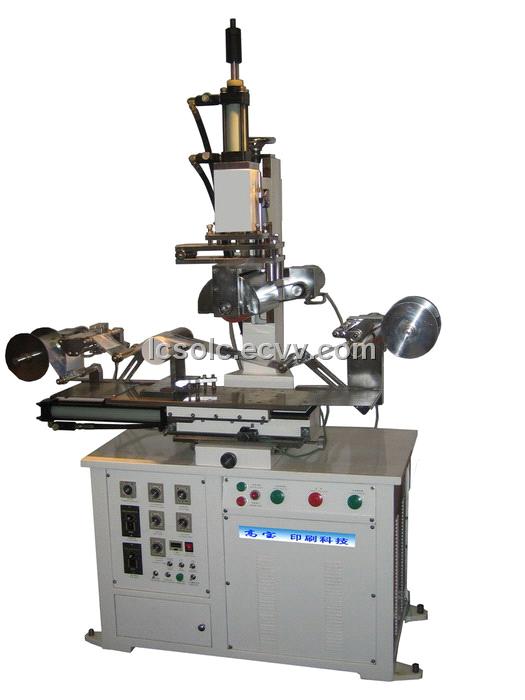

KC-H-300M heat transfer printing machine

Detailed Product Description

Specifications

1. Length of Rubber Roller: 150mm
2. working table area: 600 x 220 mm
3. max pressure:1300 Kg
4. up-and down distance: 80 mm
5. Table Stroke : 300 mm
6. power supply: 380 V
7. heat wattage: 1500 W
8. foil feed: Motor Drive
9. temperature range: 0 - 400oC
10.Net Weight :345 Kg
11. outer dimension:1300 x 600 x 1700 mm

Advantages

1.Microprocessor control (English/Chinese version switchable).
2.Rubber roller contacts uniformaty for large area transfer with substrates .
3.High precision photo sensor used to monitor and control the feeding of foil with dots .
4.Stamping head height is adjustable to meet the requirements for different substrates with various heights.
5.Auto foil feeding and collecting and the feeding length adjustable
