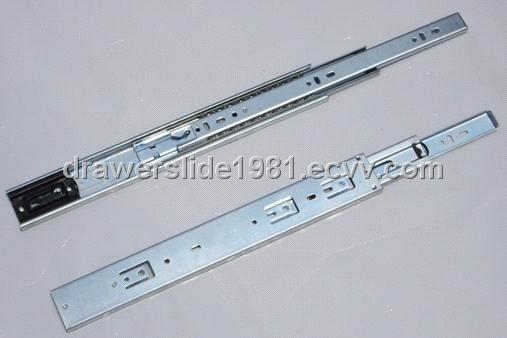

45mm full extension self -closing slide

45mm full extension self -closing slide

Material: Work hardened cold rolled steel

Mounting: Side mount, for frame and frameless construction

Load capacity: 45kgs/450mm

Finish: Zinc plated ,Black ，Chrome

Thickness: 1.2/1.2/1.5mm;1.1/1.1/1.4mm;1.0/1.0/1.2mm

The installation gap: the installation gap between rail is 12.7+/-0.1mm

Size: 200mm-900mm

Option: 1" over travel

featrures:
with self closing function
