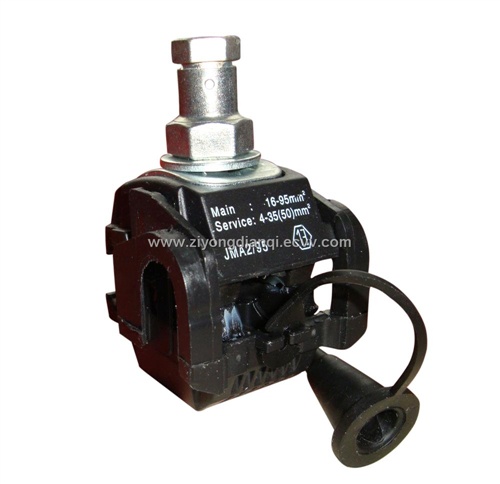

Insulation piercing connectors IPCs JMA2-95

Insulation Piercing Connector for Aerial Bundle Cable.

JMA2-95

main:16-95mm2

tap:4-35(50)mm2

Application
.For street lighting connection in LV insulated overhead lines and tunnel lighting applications..

Features
. Special connecting blade apply to joint of Cu(Al) and Cu(Al) or Cu and Al.
. Resin effusion technology and self-seam structure let connector has waterproof,high insulation strength feature.It can resistant to 4kv 1min in water.
. Small electric connecting resistance , resistant to high impulse current . The change of resistance is very small.All the parameters are very good to the requirement that described by WHVRI.
. Stainless bolt and nut and the other components let the clamp has excellent mechanic and resistance to corrosion performance.
. Adopted special feature rubber as waterproof and insulation material.It let the clamp can be safely used in -50---150 degree C.The special rubber will not failure in 50 years.The end cover has bolt frame.It can adapt to all kinds of cables.(Attention:only the new rubber can be colored to colorful rubber.The re-used rubber can not be colored.)
. The shuck is made by imported excellent glasses enhanced plastic.So,it has excellent mechanic feature and environmental aging performance.
