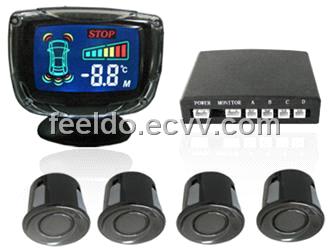

Colorful LCD Parking Sensor

Detailed Product Description

Colorful LCD Parking Sensor
Automatically activated when reversing gear is engaged;
The closer the obstacle is, the faster the alert beeping frequency is to indicate the safety zone, caution zone and danger zone;
2/4/6 ultrasonic sensors selectable;
Voice report optional;
Colorful screen;
Adjustable volume: ON/OFF;
Dynamic digital LCD display to indicate different distances
as well as orientation of the obstacle (front or back);
Dynamic sketch indicator of the working sensors;
Exact distance display;
STOP reminder.

Technical parameters:
Operating voltage: 12V DC (24V optional)
Operation current: 20mAh ~ 200mAh
Sensor installation height: 45 ~ 60cm
Detection distance: 0.2 ~ 2.0m
Ultrasonic frequency: 40kHz
Operating temperature: -40°C ~ +85°C
Beep volume: 80 ~ 100dB (at 30cm distance)
Noblest Korean Style Reversing Camera
Images Sensors :1/4 OV7940
TV System :NTSC
Effective Pixels: NTSC: 656(H)×492(V)
Sensing Area(mm):4.9X3.7
Resolution(TV Lines):420 TV lines
Min.IIIumination:0 Lux (Led on)
Video Output:75 Ohm
S/N ratio :Better than 48dB
Lens F=1.7 mm
Lens Angle(Deg.) : 150° super wide view angle
Operating Temperature(Deg.C): -20～+75(RH95% Max.)
Storage Temperature(Deg.C) :-30～+85(RH95% Max.)
Carton:49.5cm*33.5cm*24.5mm 50PCS/CTN
