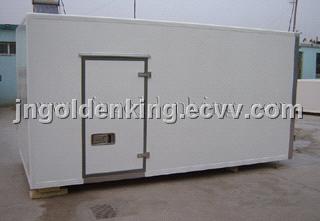

Sell Truck Body

Our refrigerated bodies processed with dry-wet method is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.



Standard thickness:

Front/rear/side panel: 82mm roof/floor panel: 105mm

The thickness can be changed according to customer’s requirements.



The dimension of panel can be chosen at the follow range:

Length 0-15750mm

Width 0-3400mm

Thickness 25-135mm





The main characters of our refrigerated & insulated bodies are as follows:

1、  Light in weight:                    40% lighter than metal body.

2、  Better insulation:                 K value less than 0.3w/m2k..

3、  High in strength and long life: 5 times longer than metal body.

4、  Non-corrosion, non-pollution, anti-brine, acid and soda-resisting

5、  Easy to be assembled and repaired at site.



Our products can be shipped in CBU (completely built up) and CKD (completely knock down) type.



We can also use our insulated panel to produce some other relative products such as Military Camping Container and Medical Rescue Shelter for Army, Emergency Mobile Telecommunication Truck for China Mobile and China Unicom, Catering Truck body for CAAC and Modular Container House etc.
