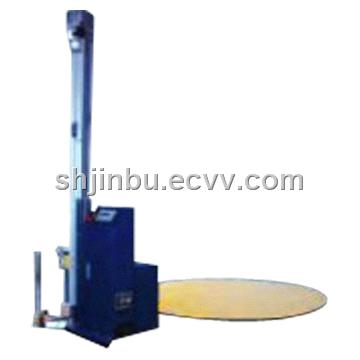

film wrapping machine

Features:

1)       Adopting programmable control (PLC) and screen controller, reliable performance, convenient operation. The way of wrapping and wrapping times could be variable.

2)      Equipped with a photoelectric detector, automatically testing the goods height and controlling the travel limit.

3)      Rotary table can reset automatically.

4)      Film pedestal is designed for changing film easily and could be fit for international standard film. LLDPE film OD<=280mm, W<=500mm, ID=76mm.

5)      It is available for wrapping heavy products.

6)      Special specification could be customized.

Specifications:

1)      Model: GP-701

2)      Machine size: 2500(3000) x 1500(2000) x 2600(2900)mm

3)      Max. wrapping size: 1200x1200x1500/1400x1400x1700mm

4)      Operation speed: 0~13r/min(adjustable)

5)      Voltage: 220V,60Hz

6)      Turntable motor power: 0.75kw

7)      Lift motor power: 0.37kw

8)      Diameter of Turntable: 1500/2000mm

9)      Turntable Loading: 1.2T/1.5T

10)   Packaging Materials: 500 x (0.015-0.035)mm LLDPE WRAPPING FILM

11)   Machine weight: 800kg
