film wrapping machine

Features:

1.         Adopting programmable control (PLC) and screen controller, reliable performance, convenient operation. The way of wrapping and wrapping times could be variable.

2.         Equipped with a photoelectric detector, automatically testing the goods height and controlling the travel limit.

3.         Rotary table can reset automatically to insure positioning accurately.

4.         Film changing easily ,install LDPE film: outer diameter not more than 280mm, width not more than 500mm, core paper 76mm

5.         Special specification could be customized, conveying line packing set are offered.

6.         Pre-stretch rate is 25%

Specifications:

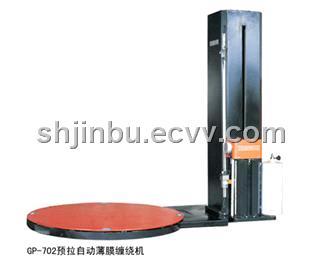

1)      Model: GP-702

2)      Machine size: 2500(3000) x 1500(2000) x 2600(2900)mm

3)      Max. wrapping size: 1200x1200x1500/1400x1400x1700mm

4)      Operation speed: 0~13r/min(adjustable)

5)      Voltage: 220V,50Hz

6)      Turntable motor power: 0.75kw

7)      Lift motor power: 0.37kw

8)      Diameter of Turntable: 1500/2000mm

9)      Turntable Loading: 1.2T/1.5T

10)   Packaging Materials: 500 x (0.015-0.035)mm LLDPE WRAPPING FILM
