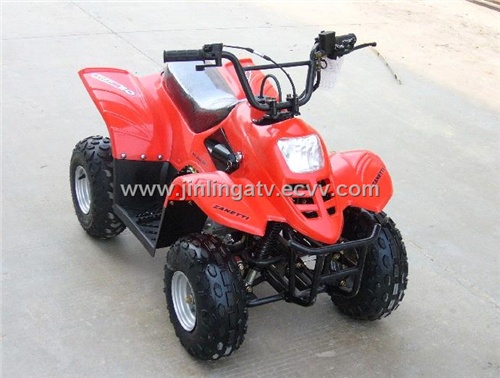

JLA-02 atv

1. engine type :48cc/72cc/86cc/97cc,4 storke
2. max torque :4.2Nm/5000rpm , 4.2Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm
3. max power :3.0Kw/8500rpm/ ,3.0kw/7500rpm,3.3kw/7500rpm,3.6kw/7500rpm,
4. ignition type :CDI
5. transmission :automatic,chain
6.Brake (Front/Rear):No/Disc
7. starting system :Electric start
8. battery spec :12V,4AH
9. front suspension details :double A x swing arm
10. rear suspension details :mono shock swing arm
11. front tire spec : 145/70-6
12. rear tires spec : 145/70-6
13. vehicle dimensions :127x68x88cm
14. seat height from ground :60cm
15. ground clearance :100mm
16. load capacity :75kg
17. fuel tank capacity :3.2L
18. gross weight in carton :85kg
19. net weight :73kg
20. packing size:115x65x64cm

Post Date:	11/6/2008
Expiry Date:	11/1/2009
Other Price Terms:	T/T
