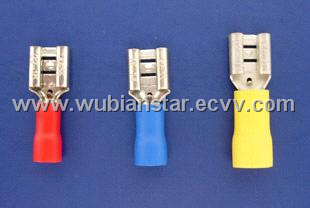

female pre-insulated terminal

female pre-insulated terminal

Contact Now

Detailed Product Description

Features:

1. Product name: female pre-insulated terminal

2. Size:

Section of lead: 0. 5 - 1. 5 mm2 (USA Spec 22 - 16 ) Imax = 10A
ITEMNO	NEMATAB	Thickness	Dimension
	NEMATAB	Thickness	B	dΦ	DΦ	L	H
	mm	mm	mm	mm	mm	mm	mm
FDD 1. 25-110（5）	0. 5*2. 8	0. 3	3. 8	1. 7	3. 8	19. 0	10. 0
FDD 1. 25-110（8）	0. 8*2. 8	0. 3	3. 8	1. 7	3. 8	19. 0
FDD 1. 25-187（5）	0. 5*4. 75	0. 35	5. 6	1. 7	3. 8	19. 0
FDD 1. 25-187(8)	0. 8*4. 75	0. 35	5. 6	1. 7	3. 8	19. 0
FDD 1. 25-205	0. 5*5. 2	0. 35	6. 5	1. 7	3. 8	20. 0
FDD 1. 25-250	0. 8*6. 35	0. 4	7. 4	1. 7	3. 8	21. 0

Section of lead: 1. 5 - 2. 5 mm2 (USA Spec 16 - 14 ) Imax = 15A
ITEMNO	NEMATAB	Thickness	Dimension
	NEMATAB	Thickness	B	dΦ	DΦ	L	H
	mm	mm	mm	mm	mm	mm	mm
FDD 1. 25-110（5）	0. 5*2. 8	0. 3	3. 8	2. 3	4. 3	19. 0	10. 0
FDD 1. 25-110（8）	0. 8*2. 8	0. 3	3. 8	2. 3	4. 3	19. 0
FDD 1. 25-187（5）	0. 5*4. 75	0. 35	5. 6	2. 3	4. 3	19. 0
FDD 1. 25-187(8)	0. 8*4. 75	0. 35	5. 6	2. 3	4. 3	19. 0
FDD 1. 25-205	0. 5*5. 2	0. 35	6. 5	2. 3	4. 3	20. 0
FDD 1. 25-250	0. 8*6. 35	0. 4	7. 4	2. 3	4. 3	21. 0
FDD 1. 25-312	0. 8*8. 0	0. 4	9. 0	2. 3	4. 3	23. 0

Section of lead: 1. 5 - 2. 5 mm2 (USA Spec 16 - 14 ) Imax = 15A
ITEMNO	NEMATAB	Thickness	Dimension
	NEMATAB	Thickness	B	dΦ	DΦ	L	H
	mm	mm	mm	mm	mm	mm	mm
FDD 5. 5-187	0. 5*4. 75	0. 4	5. 6	3. 4	5. 7	23. 0	14. 0
FDD 5. 5-250	0. 5*6. 35	0. 4	7. 4	3. 4	5. 7	25. 0
FDD 5. 5-312	0. 8*8. 0	0. 5	9. 0	3. 4	5. 7	27
FDD 5. 5-375	0. 8*9. 4	0. 5	10. 9	3. 4	5. 7	29. 6

3. Packing: 100pc per polybag, carton for outer packing. Customer's special packing are available. Welcome to get information in detail, thks !
