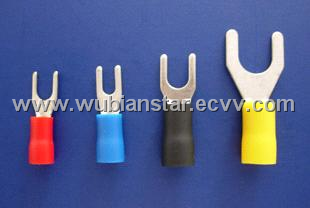

furcate pre-insulated terminal

Section of lead:0.5 - 1.5 mm2 (USA Spec 22 - 16 )   Imax = 19A  Material:Copper  Thickness of Material:0.75mm

ITEMNO

Dimension (mm)

color

USABOLTNO

BOLT dia.   d2(mm)

B

L

F

H

DΦ

FSV 1.25 - 3.5

#6

3.7

7.5

19

5.1

10.0

4.3

red

FSV 1.25 - 4

#8

4.3

7.5

19

5.1

FSV 1.25 - 5

#10

5.3

7.5

19

5.1

Section of lead:1.5 - 2.5 mm2 (USA Spec 16 - 14)   Imax = 27A  Material:Copper  Thickness of Material:0.8mm

ITEMNO

Dimension (mm)

color

USABOLTNO

BOLT dia.   d2(mm)

B

L

F

H

DΦ

FSV 2 - 3.5

#6

3.7

7.5

2.37

5.2

10.0

4.9

blue

FSV 2 - 4

#8

4.3

7.5

23.7

5.2

FSV 2 - 5

#10

5.3

7.5

23.7

5.2

Section of lead:4 - 6 mm2 (USA Spec 12 - 10)   Imax = 48A  Material:Copper  Thickness of Material:1.0mm

ITEMNO

Dimension (mm)

color

USABOLTNO

BOLT dia.   d2(mm)

B

L

F

H

DΦ

FSV 5.5 - 3.5

#6

3.7

8.5

25.5

7.5

13.0

6.7

yellow

FSV 5.5 - 4

#8

4.3

8.5

25.5

7.5

FSV 5.5 - 5

#10

5.3

8.5

25.5

7.5
