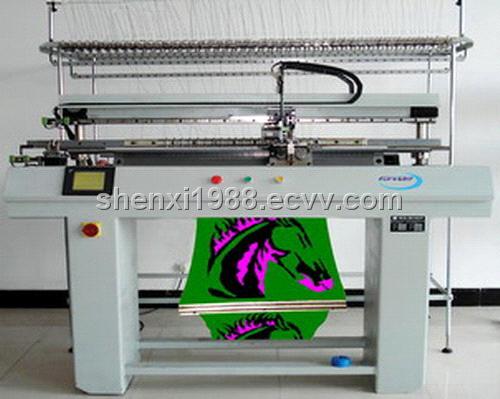

Semiautomatic Intarsia Flat Knitting Machine

The second new upgrading edition machine has a higher pattern design speed, no need more calculation by manpower. Enter the pattern into the computer, it will calculate the feeder quickly, then to place it accord to the colour of the feeders. Besides, we have entered the function of push needles; it can according to the custom's need that to decrease the amount of needles by computer. And the effect of the sweater knitted by our machine is the same with the hand driven flat knitting machine

The only thing need man to do is to push the needles to the top, and it will be knitted down in the end, achieving the ideal effect.

(1) Perfect cover effect; (2) Smooth conjunction of different color yarn as a picture; (3) No big loops posed by the average computer flat knitting machine.

Technical specification:

1. Volume: 1900mm (length)*1400mm (width)*1900mm (height)
2. Weight: 300KG
3. Gauge: 5,6,7,9,12,14
4. Electronic power: 220v 50/60Hz
5. Pattern input: U disk input
6. Knitting width: adjust according to cloth piece
7. Knitting speed: depends on the yarn strength
8. Stop motion: needle brake, knot, program error
9. Density adjustment: manual cam adjustment, nail indication
10. Needle bed length: 40"
11. Color yarn change: 1-90

Product features:

1. The very unique and patent design on yarn feeders, of more than 90 yarn feeders.
2. The unique way of yarn twist, creates the perfect cloth cover effect.
3. The computerized pattern design, entire microcomputer control, simple operation, and easy maintenance.
4. Chinese touch screen operation, easy start.
5. Increasing the amount of needles automatically, while to decrease the amount of needles with manual aid; there is Chinese indication on the screen so it is no need to remember procedure.
6. Density is adjusted by cam which with the dial indication that facilitates adjustment accurately.
7. Band tension arm made of stainless steel is enduring and beautiful.
8. Multi-gauges can be interchangeable. It is easily to be interchanged into the corresponding gauge model after changing the yarn feeders and needle panel.
9. The perfect cloth cover, different color yarn joint smooth as a picture, without any tuck stitch.
