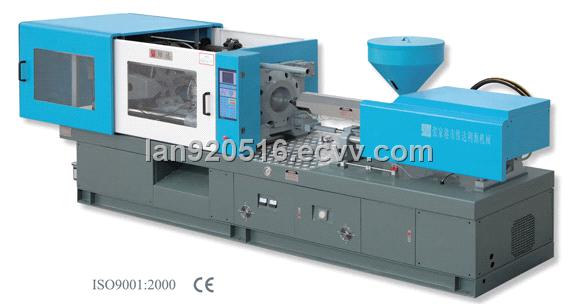

plastic injection molding machine

Detailed Product Description

Descrption	Unit	LY140
Injection Unit
Screw Diameter	MM	40	45
Screw L/D Ratio	L/D	23.6	21
Max. Injection Size(Theoretical)	CM3	257	326
Injection Weight	G	234	296
Injection Weight	OZ	8	10
Max. Injection Pressure	KG/ CM2	2080	1645
Max. Injection Rate (PS)	CM3/SEC	100	127
Max. Plasticizing Capacity (PS)	KG/H	72	92
Screw Rotation Speed	RPM	10-225
Screw Stroke	MM	205
Screw Torque	KG.M	90
Injection Head Force	TON	5.65
Injection Head Stroke	MM	300
Heating Capacity	KW	11.85
Heating Zone Quantity	AREA	3 + N
Clamping Unit
Max. Clamping Force	TON	140
Max. Opening Stroke	MM	400
Mould Thickness (Min.-Max.)	MM	175-460
Max. Distance between Mould Plates	MM	860
Space among Tie Bars (W×H)	MM	420×400
Mould Plate Dimension(W×H)	MM	635×615
Ejector Force	TON	2.75
Ejector Stroke	MM	100
Ejector Quantity	PC(S)	1 or 5
Others
Pump Motor Power	KW	15
Max. Pump Volume	L/MIN	75
Dimension (L×W×H)	M	4.2×1.2×1.8
Weight	TON	4.5
