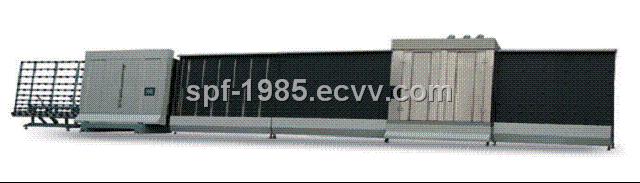

insulating glass produce line

Detailed Product Description

Main Technical Parameters:

1) Max. glass dimensions: 2500*3000mm:2500*3500mm(over-long)

2) Min. glass dimensions: 200*450mm

3) Thickness of glass washed: 3-15mm

4) Thickness of insulated glass: ≤48mm

5) Speed of washing glass: 0-8m/min

6) Max.working speed: 45m/min

7) Power: 3P 380V/1P+N 220V 50Hz 32.35KW

8) Compressed air flow volume: 0.8m3/min

9) Pressure: 1Mpa

10) Water electrical conductivity: ≤50μS/cm
