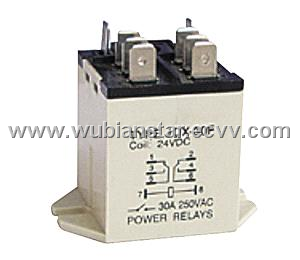

JQX-30F Power Relay

1) Product name: power relay JQX-30F relay.

2) Technical data:

* Size: 38×35. 5×48 mm

* Terminal layout : 2Z

* Contact capacity: AC: 30A, 250V/DC: 30A , 28V

* Contact resistance(mΩ): ≤50mΩ

* Insulation resistance(MΩ): ≥500MΩ

* Dielectric strength : BOC 1500VAC/BCC 1500VAC

* Coil nominal voltage : AC 6 to 380V/DC 6 to 220V

* Coil nominal power : AC ≤2. 5VA/DC ≤1. 5W

Operating temperature(℃) : -40～＋60

* Weight(g): ≤70

* Mounting methods : Printed-circuit board, Outlet

3) Packing: standard export packing, cusomer's special packing are available.
