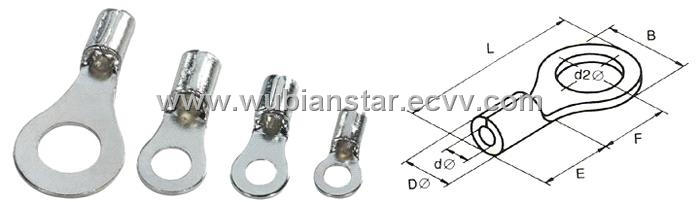

Circular Naked Terminal

Features

1. Product name: circular naked terminal-TO

2. Material: copper.

3. Size

1) Cable size: 0. 5～1. 5mm²（A. W. G. 22～16)

* Max current: Imax=19A

* Material: purple copper　

* Thickness: 0. 75mm

2) Cable size: 1. 5～2. 5mm²（A. W. G. 16～14)

* Max current: Imax=27A

* Material: purple copper　

* Thickness: 0. 8mm

3) Cable size: 2. 5～4mm²（A. W. G. 14～12)

* Max current: Imax=37A

* Material: purple copper　

* Thickness: 1. 0mm

4) Cable size: 4～6mm²（A. W. G. 12～10)

* Max current: Imax=48A

* Material: purple copper　

* Thickness: 1. 0mm

4. Packing: 100pcs per bag, carton for outer packing, customer's special packing are available.
