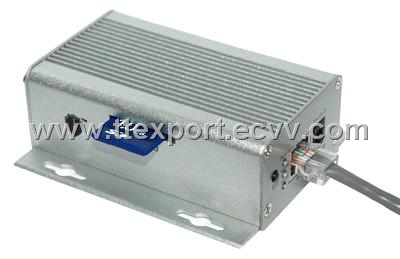

TT-IP Server

Detailed Product Description

Video	Encode	H.264 Base Line SOC
	Input	1x BNC
	Resolution	D1：720x576 , CIF：352x288 ，QCIF：176x144
	Max frame	D1 @ 25FPS
	Bit rate	16K-4M bps adjustable
	Bit-stream	8 bit-stream
Audio	Bit rate	13 k bps
	Input	1 x RCA
	Output	Optional, 1 x SPK connector
Network	RJ-45	10/100 Base-TX ethernet
Network	Protocol	TCP/IP 、UDP、HTTP 、RTP、RTCP、RTSP 、DHCP、PPPOE
LEDs	PWR (red)	Power indicator
	Link (green)	Link indicator.
	Server (yellow)	Server connected indicator
	Record (red)	Recording indicator
Button	SD Record ON/OFF	Start/ stop recording
Connectors	RS-485	Baud rate=9600, ID=1, 1 stop, no parity
Connectors	SD card	Support SD/ SDHC up to 16GB. (1-CH NVR).
Power & Other	Power	DC 12V
	Consumption	<4W
	Dimension	114 x 36 x 85 (mm)
	Weight (suttle)	250g
	Temperature	0℃～ 70℃
	Humidity	20%～90% RHG
