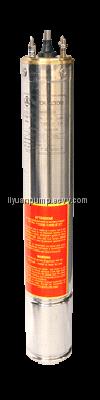

6"motor

Characters

· Meet the requirements of Standard IEC34-1 with fully sealed rotor
· 6 inches NEMA standard flange connector
· Use SKF thrust bearing and FAG bearing supporting higher axial load.
· Stainless steel casing and shaft,
· Axial pressure:15,500N
· With sand-proof filter, pressure balance device made of reinforced butyl rubber

Properties

· Power: three phase,3kw-15kw
· Voltage: three phase,380V( ±5%) 50HZ
· Protection device class: IP58
· Insulation class: C I B
· Maximum temperature:35
· Minimum water flux through motor:16cm 3 /s
· PH value of water:6.5-8.0
            · Maximum numbers of start:20/h
            · Perpendicular or level installation
