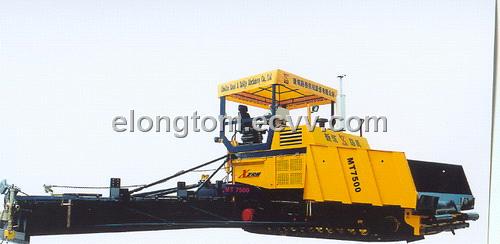

MT7500 Road Material Paver

Model

Character

Technical data

MT7500S

(hydraulic flex type)

The machine’s hydraulic system and travel redactor adopt  German Rexroth elements; CUMINS 6BTA5.9-C180 engine; imported meters; track type full hydraulic driving can perform  smooth paving and sheer off in spot on the curved road that have set swerve radii; MC8 electronic constant speed control system from Conpus company; two longitudinal and one transverse level system; Ultrasonic material level control; imported electric control elements make the system realize automatic dependable and accurate control; high rigid flex type screed, basic paving width 3m，most flex paving width 5.25m and mechanical extend to 7.5m; imported integrated lubricate system.

Basic paving width 2.5 m

Most flex width 5.25 m

Most paving width 7.5 m

Most paving thick 0~350 mm

Paving speed 0~14 m/min

Travel speed 2.6 km/h

Hopper capacity 13 t

Theoretic productivity 600 t/h

Climb ability 20%

Double tamper speed 0~1500 r/min

Main tamper swing 5 mm

Vice tamper swing 0、3、6、9、10mm

Level up 2mm/3m

Arch  -1%~+3%

Transverse error ±0.02%

Diesel engine 6BTA5.9-C180(CUMINS)

Rating power  132 kW

Rating rev  2200 rpm

Full weight  22.5 t

Figure size (mm) 6984×2500×3890

MT7500C

(mechanical type)

The machine’s hydraulic system and travel redactor adopt  German Rexroth elements; CUMINS     6BTA5.9-C180 engine; track type full hydraulic driving can perform  smooth paving and sheer off in spot on the curved road that have set swerve radii; super large hopper; anti-wear helix vanes; super wide and heavy screed; tamper swing can multi-classes adjust; rotate speed of tamper and vibrator may be continuously changed; engine cover may turn over; slide handle console; MC8 electronic constant speed control system from Conpus company; two longitudinal and one transverse level system; Ultrasonic material level control; imported electric control elements make the system realize automatic dependable and accurate control; least paving width 2.5m and most paving width 7.5m; imported integrated lubricate system.

Basic paving width 2.5 m

Most paving width 7.5 m

Most paving thick 0~350 mm

Paving speed 0~14 m/min

Travel speed 2.7 km/h

Hopper capacity 13 t

Theoretic productivity 600 t/h

Climb ability 20%

Double tamper speed 0~1500 r/min

Main tamper swing3,5,7,9 mm

Vice tamper swing 0、3、6、9、10mm

Level up 2mm/3m

Arch  -1%~+3%

Transverse error ±0.02%

Diesel engine 6BTA5.9-C180(CUMINS)

Rating power  132 kW

Rating rev  2200 rpm

Full weight  21.4 t

Figure size (mm) 6090×2600×3890

MT7500BⅠ

(mechanical type)

The machine’s hydraulic system and travel redactor adopt  German Rexroth elements; CUMINS     6BTA5.9-C180 engine; track type full hydraulic driving can perform  smooth paving and sheer off in spot on the curved road that have set swerve radii; super large hopper; anti-wear helix vanes; super wide and heavy screed; tamper swing can multi-classes adjust; rotate speed of tamper and vibrator may be continuously changed; engine cover may turn over; slide handle console; MC8 electronic constant speed control system from Conpus company; two longitudinal and one transverse level system; Ultrasonic material level control; imported electric control elements make the system realize automatic dependable and accurate control; least paving width 2.5m and most paving width 7.5m; imported integrated lubricate system.

Basic paving width 2.5 m

Most paving width 7.5 m

Most paving thick 0~350 mm

Paving speed 0~15 m/min

Travel speed 2.7 km/h

Hopper capacity 13 t

Theoretic productivity 600 t/h

Climb ability 20%

Double tamper speed 0~1500 r/min

Main tamper swing 3, 5, 7, 9 mm

Vice tamper swing 0、3、6、9、10mm

Level up 2mm/3m

Arch  -1%~+3%

Transverse error ±0.02%

Diesel engine 6BTA5.9-C180(CUMINS)

Rating power  132 kW

Rating rev  2200 rpm

Full weight  21.4 t

Figure size (mm) 6090×2600×3890

MT7500A

(mechanical type)

 The machine’s hydraulic system and travel redactor adopt  German Rexroth elements; CUMINS     6BTA5.9-C180 engine; track type full hydraulic driving can perform  smooth paving and sheer off in spot on the curved road that have set swerve radii; super large hopper; anti-wear helix vanes; super wide and heavy screed; tamper swing can multi-classes adjust; rotate speed of tamper and vibrator may be continuously changed; engine cover may turn over; slide handle console; MC8 electronic constant speed control system from Conpus company; two longitudinal and one transverse level system; Ultrasonic material level control; imported electric control elements make the system realize automatic dependable and accurate control; least paving width 2.5m and most paving width 7.5m; imported integrated lubricate system.



Basic paving width 2.5 m

Most paving width 7.5 m

Most paving thick 0~350 mm

Paving speed 0~14.8 m/min

Travel speed 2.7 km/h

Hopper capacity 12 t

Theoretic productivity 500 t/h

Climb ability 20%

Double tamper speed 0~1500 r/min

Main tamper swing 5 mm

Vice tamper swing 0, 3, 6, 9, 10mm

Level up 2mm/3m

Arch  -1%~+3%

Transverse error ±0.02%

Diesel engine 6BTA5.9-C180(CUMINS)

Rating power  132 kW

Rating rev  2200 rpm

Full weight  17.5 t

Figure size (mm) 5820×2550×3550
