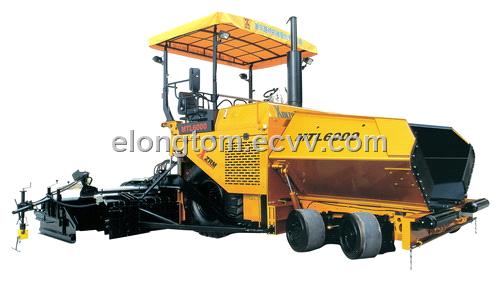

MTL6000 Wheel Multi-function Paver

Model

Character

Technical data

MTL6000

MTL6000 wheel type paving machine is fully hydraulic driven; its two pairs of front wheel are solid rubber wheel(front pair is steer  wheel) so as to both increase bear ability and avoid more deform of tyre and reduce effect about paving quality; rear wheels are a pair charge tires; high travel speed (13km/h) and less swerve radii (6.5m); it can transfer freely from on site to another with lower transfer expensive; well flexibility and operation performance; there is powerful managing ability for little pile or deep pit; when paving on a curve it can make smooth mat.

 Imported American Sarau hydraulic drive elements; CUMINS 4BTA3.9-C125 engine, high anti-wear vanes; super large Hooper; flex type screed;  rotate speed of tamper and vibrator may be continuously changed; engine cover may turn over; slide handle console; removable console; American Sauer-Danfoss control system; two longitudinal and one transverse level system; Ultrasonic material level control; imported electric control elements make the system realize automatic dependable and accurate control; basic paving width 2.5m and most flex paving width 4.5m, and mechanical extend to 6.0m; imported integrate lubricate system.



Basic paving width 2.5 m

Most flex width 4.5m

Most paving width 6 m

Most paving thick 0~250 mm

Paving speed 0~16 m/min

Travel speed 13 km/h

Hopper capacity 12 t

Theoretic productivity 350 t/h

Climb ability 20%

Double tamper speed 0~1500 r/min

Tamper swing 5 mm

Level up 2mm/3m

Arch  -1%~+3%

Transverse error ±0.02%

Diesel engine 4BTA3-C125(CUMINS)

Rating power  93 kW

Rating rev  2200 rpm

Full weight  16.5 t

Figure size (mm)   6267×2650×3670
