led display control system

Detailed Product Description

Technical Parameter:

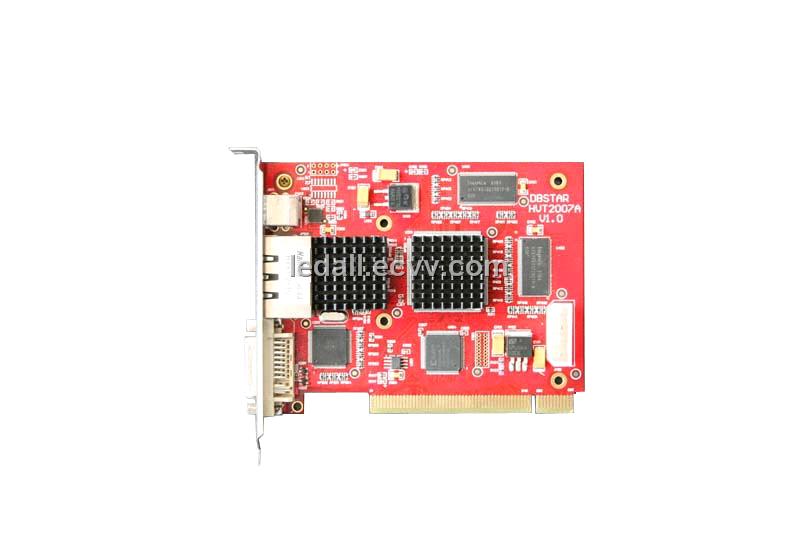

DBStar Real-Pixel/Virtual-Pixel Double-color/Full-color LED Panel Display System consists of a main controller card and a serial of HUB cards. Supported pixel resolutions are 1280x1024, 1920x1200, 1600x1200 and 1024x768.

The HUB card includes gray grade 16384 and gray grade 4096(adjustable). 16k below in the following table is gray grade 16384, and the performance indexes are applicable to static、1/ 2 and 1/4、1/8、1/16、1/32 scanning.

selected gray scales	16K	4K
Single main controller card	1280×1024(vaster than the nearest competitor)	1280×1024(vaster than the nearest competitor)
maximum data clock(DCLK) frequency	31.25MHz(faster than the nearest competitor)	31.25MHz(faster than the nearest competitor)
pixel area per HUB	256x96(1.5 times than the nearest competitor)	256×192(1.5 times than the nearest competitor)
cascading HUBs per cable	256	256
Red, green, blue (separated gray grades)	16384	4096
brightness wastage	<9%(less than the nearest competitor)	<15%(less than the nearest competitor)
refresh rate	≥340Hz(DCLK=25MHz)	≥320Hz(DCLK=25MHz)
main controller card refresh rate	≥60Hz	≥60Hz
Automatical brightness adjustment (HUB seperately adjustment)	256	256
Current Gain Adjustment (HUB seperately adjustment)	256	256
Contrast/lightness/color temperature (handoperation adjusting, not effect grey level)	256	256
Installation	Simple Edition:LedSetup Full Edition: Xmplayer	Simple Edition:LedSetup Full Edition: Xmplayer
Playing software	Xmplayer	Xmplayer
Supporting optical fiber	Multi-mode(MMF):500m single-mode(SMF) 10km	Multi-mode(MMF):500m single-mode(SMF) : 10km
