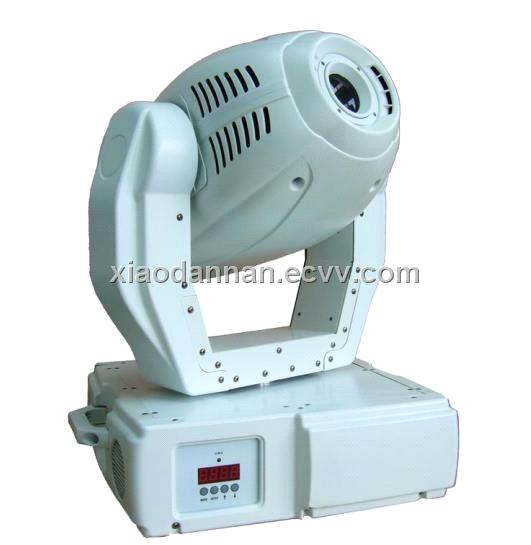

RB-575+Movinghead spot zoom

■ Lamp：GE MSR 575/2
■ Power supply：AC220V/50HZ
■ Power consumption：800W
■ 16 DMX control channels
■ 2 separate color wheels
■ Color wheel 1：9dichroic colors+open white，  rainbow effect in both directions
■ Color wheel 2：9dichroic colors+open white, 5600K and 3200K CTO，uv filter for wood light, rainbow effect in both directions
■ Total number of unique color：81
■ 2 separate gobo wheels
■ Gobo wheel 1：6 rotating interchangeable and indexable gobos+open position
■ Gobo wheel 2：9 fix  gobos+open position  with gobo shake function，robo-gobe effect
■ Motorized stepless iris
■ High-speed rotating 3 facet prism
■ Remotely controllable motorized focus
■ Combined mechanical dimmer/shutter
■ Smooth micro-step driven dimming，variable strobing 1-10 flashes per second
■ Pan movement range 530。 ，tilt movement range 280。
■ Selectable 16 bit pan/tilt movement resolution
■ Automatic pan/tilt position correction
■ Addressing，personality setting and effects  calibration via 4-digit LED control panel
■ Stand alone and master/slave opertion， on board programming
■ 3 freely programmable programs
■ Dimensions(L*W*H)：545*535*675mm
■ Weight：45kgs

DMX CHANNELS:

CH1: STROBE
CH2: GOBO WHEEL 1
CH3: GOBO ROTATION
CH4: GOB WHEEL 2
CH5: PAN
CH6: TILT
CH7: PAN/TILT SPEED
CH8: PAN FINE 16BIT
CH9: TILT FINE 16BIT
CH10: COLOR WHEEL 1
CH11: COLOR WHEEL 2
CH12:PRISM
CH13:PRISM ROTATION
CH14:IRIS
CH15: ZOOM
CH16: OPEN/RESET
