DL6820 UHF Long Range Reader Reader.Important performance
Support protocol:ISO18000-6B/ISO18000-6C(EPC G2)
Working frequency:ISM 902MHz～928MHz,Or 920MHz～925MHz
Customization:860MHz～960MHz
Working mode:FHSS or working mode of fixed frequency pulse transmitting set by software
Transmit power:20dBm～30 dBm(set by software)
DL6820 UHF Long Range Reader Reader.Read-Write performance
Read speed:The average read time for single card is less than 10ms per 64 bits
Read distance:8m～10m(according of tag and entironment)
Write speed:8bits less than 30ms
Write distance:4m～7m(according tag)
Read prompt:Buzzer
DL6820 UHF Long Range Reader Reader.Data Port interface
DL6820A:RS-232 + RS-485 + Wiegand26/34
DL6820B:RS-232 + RS-485 + Wiegand + USB
DL6820C:RS-232 + Wiegand + Ethernet
DL6820 UHF Long Range Reader Reader.Electric parameter
Power supply:DC+5V
Power consumption:5W
DL6820 UHF Long Range Reader Reader.Exterior and weight
Dimension:200mm×190mm×80mm
Weight:1000g
DL6820 UHF Long Range Reader Reader.Working environment
Working temperature:-30℃～70℃
Capable of simultaneously reading multiple passive UHF tags at ranges up to 10 m, model DL6820 is suited for embedded applications, such as item-level inventory. Working frequency range is 902-928 or 920-925 MHz, average read time for single card is less than 10 ms/64 bits, and write distance is 4-7 m. Based on ISO18000-6B or ISO18000-6C Gen2 protocol, reader features FHSS or fixed frequency pulse transmitting working mode, +5 V DC power supply, and 20-30 dBm transmit power.

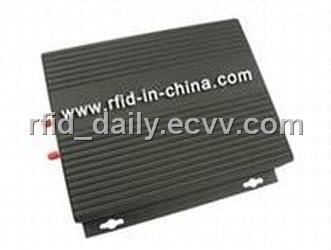

UHF Long Range RFID Reader DL6820 --USD1760
DAILY RFID,has announced UHF RFID reader DL6820 with double antenna channel. The UHF RFID reader DL6820 can simultaneously read multiple passive UHF tags at ranges up to 10m, specially for embedded UHF applications such as item-level inventory.
Here is the specification about the UHF RFID reader DL6820:
o Protocol: ISO18000-6B or ISO18000-6C Gen2
o Working frequency: 902MHz -928MHz or 920MHz-925MHz
o Working mode: FHSS or fixed frequency pulse transmitting (set by software)
o Read speed: The average read time for single card is less than 10ms per 64 bits
o Reading range: 8m-10m(according to tag and environment)
o Write speed: 8bits less than 30ms
o Write distance: 4m-7m(according to tag and environment)
o Power supply: DC+5V
o Transmit power: 20dBm-30 dBm(set by software)
o Read prompt: Buzzer
o Support Port: RS232 or RS485 or Weigand26/34 or Trigger or Ethernet
o Dimension: 200mmx190mmx80mm
o Weight: 1000g
About DAILY RFID CO.,LIMITED
DAILY RFID CO.,LIMITED , which belongs to PAN Group Co., ltd, is the leading company focusing on the research and development of EPC and RFID technology in China.
DAILY RFID specialize in producing arguably the world's most extensive line of RFID Tag,RFID Label,Smart Card and RFID Reader, which are suitable for any vertical markets, and have obtained the National Integrated Circuit Card Register Certificate, IC Card Manufacture License and ISO9001 Quality Management System Certification. Also, we own a factory covering an area of 26,000 square meters.
DAILY's products are designed and manufactured with recognized industry standards relevant to RFID and its markets but most notably for use in the demanding environments to recognize and understand your business's RFID needs. We are commited to providing "Innovative Technology", " Superior, Cost-efficient Product" and " Professional, Efficient Customer Services".
