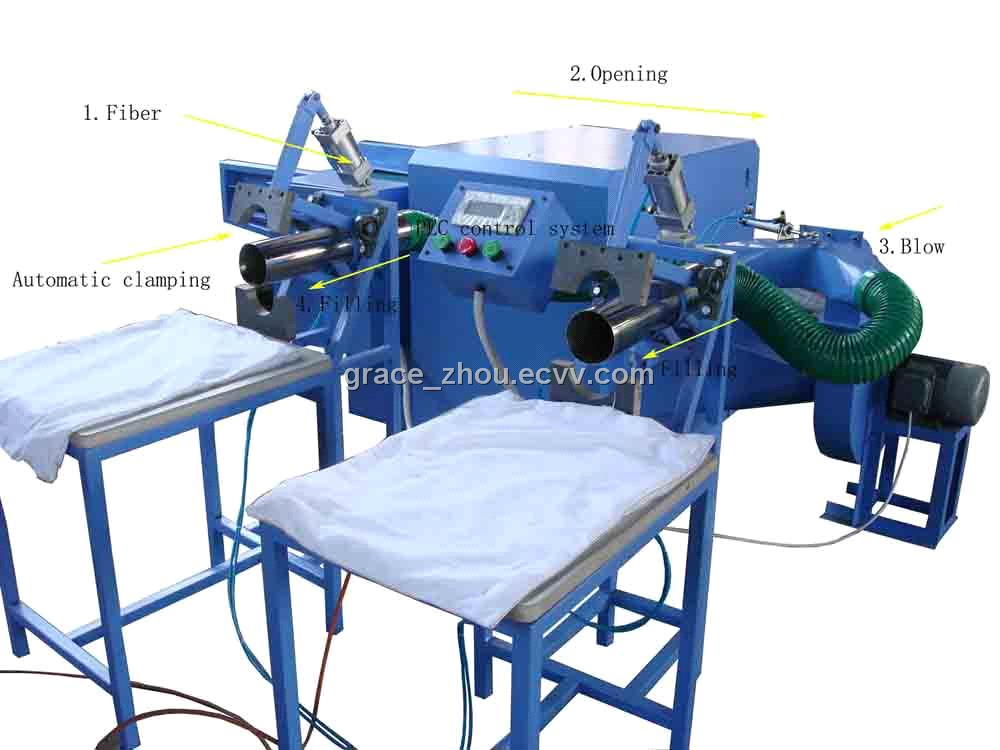

Computerized Pillow Machine

Detailed Product Description

? Item no.: QL003-PF

? Dimension: Approx. 3300*3200*1020mm

? Voltage: 380v 50Hz 3phase

? Power: 8.45kw

? Capacity: approx. 120kg/h

? Weight: 820kg

? Operator needed: 2operators

? Payment term: By T/T, 50% is paid in advance; balance is against the BL copy.

? Delivery time: within 30 days after receipt the down payment by sea.

? Guarantee: 1year material for free that not including the quick wearing parts, after sales service for ever.

? Certification: CE CO

? Description:

? The PLC pillow machine is a new design and developed equipment for pillow filling according the highest technology in Finland which can be handled by only 2 operators.

? The suitable material is 2 or 3 dimensional hollow conjugate siliconized polyester fiber that shorter than 100mm.

? There are 1 big cylinder and 7 small rollers are assembled to the machine which is metallic self-lock wire produced.

? The fiber can be opened for more than 98% and not be damaged.

? It is assembled with one fiber opening machine, one fan and 2 blowers.

? It is working through a PLC control system and the 2 blowers can be handled by only one operator with simple operation.

? Pillow case can be hold by special construction and filling automatically.

? The filling weight can be controlled basically via filling time flux.

? Different power condition can be ordered。

Other Price Terms:

Payment term: By T/T, 50% is paid in advance; balance is against the BL copy.
