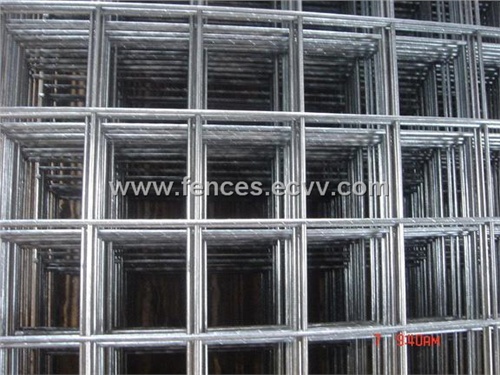

Specifications of Welded Mesh |
|
Opening |
Wire Diameter<BWG> |
|
In inch |
In metric unit(mm) |
|
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
|
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
|
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
|
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
|
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
|
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
|
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
|
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 2.4m
2,Special sizes available on request
3,Packing: in waterproof paper in rolls. Custom packing available at request. | |
|
Galvanized Fencing Mesh |
|
Opening |
Wire Diameter<BWG> |
|
In inch |
In metric unit(mm) |
|
2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
|
3" x 3" |
75mm x 75mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
|
2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
|
4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
|
Technical Note:
1,Standard roll length:130m;width: 0.5m to 2.4m
2,Special sizes available on request
3,Packing: in waterproof paper in rolls. Custom packing available at request. | |
|
PVC coated welded mesh |
|
Opening |
Wire Diameter<BWG> |
|
In inch |
In metric unit(mm) |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21 |
|
3/4" x 3/4" |
19mm x 19mm |
16,17,18,19,20,21 |
|
1" x 1" |
25.4mm x 25.4mm |
15,16,17,18,19,20 |
|
2" x 2 " |
50.8mm x 50.8mm |
15,16,17,18,19,20 |
|
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 2.4m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls.special packing available on request. | |
