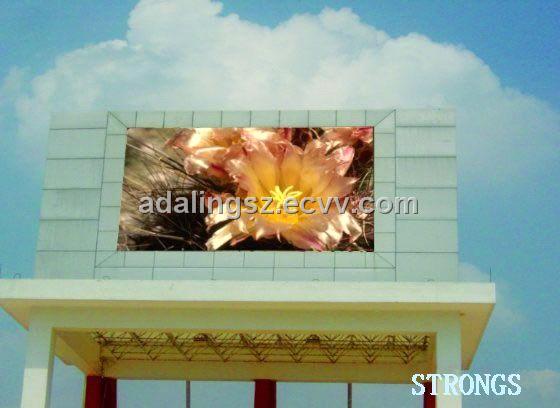

outdoor led display screen P20

Technical Specification:
Color   Size      Bright     Wavelength        Test Condition
Red      546   450mcd    620-630nm    25 centidegree, 20mA
Green   546  1950mcd   520-530nm    25 centidegree, 20mA
Blue     546    350mcd    460-470nm    25 centidegree, 20mA
To get best white balance, color ratio is designed to be R:G:B=3:6:1

Module
Pixel Pitch:20mm
Pixel Density:2500pixel
LED Arrangement:2R1G1B
Drive Mode:Constant Current Driver
Scan Mode:Static scan
Module Resolution:16*8
Module Size:320mm*160mm

Cabinet
Cabinet Width:1280mm
Cabinet Length:960mm
Cabinet Area:1.2288
Cabinet Resolution:64*48

Display
Viewing Distance:20~~350m
Brightness:>5000
Horizontal Viewing Angle:110 degree
Vertical Viewing Angle:70 degree
Working Temperature:-20 centidegree~~ +50 centidegree
Humidity:20%~~95%RH

Power
Power Voltage:5V
Max Power Consumption:<850W
Average Power Consumption:<300W

System
Brightness Adjustment:Manual, 256 levels; Auto, 8 levels
Grey Grade:256 grade
Display Color:16.7M
Refresh Frequency:>480HZ
Waterproof:IP65
Input:S-Video/RGB/RGBHV/YUV/COMPOSITION
MTBF:>1000 hours
Using Lifespan:50, 000 hours
Miscellaneous Point Ration:<0.0002
Communication Distance:100m with UTP cable

Assembly:Quick assembling structure makes it convenient to install and uninstall rapidly without any traditional manual tools
