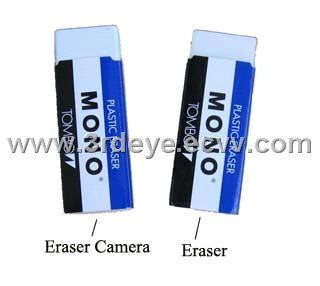

2.4GHz Wireless Eraser Camera

Detailed Product Description

Product selling point:

>Small size of transmission camera into Eraser （54mm X20mm X 11.5mm） 14g

> Built-in antenna

>Single chip 1/3” format video camera

> Low lllumination <0.05lux

>Rechargeable Li-battery in camera enable at least 2 hours continuous working

>Min. 100m transmission distance without blocks

Parameter list:

Item		Value
Transmission Frequency		ISM 2,400MHz~ 2,483MHz CH1 CH2 CH3
Modulation Mode		FM
Antenna Type		Hidden
Unobstructed Effective Range		100m(Without Block)
Operating Temperature		0℃~ +50℃ / +14℉~ +122℉
Storage Temperature		-20℃ ~ +60℃ / -4℉ ~ +140℉
Operating Humidity		85%RH
	Imaging Sensor Type	CMOS
	CMOS Total Pixels	628×582(PAL)/ 510×492(NTSC)
	Horizontal Resolution	420 TV Lines
	View Angle	62°
	Minimum Illumination	0.05 Lux / F1.5
	Transmission Power	10mW
	Power Supply	DC 5V 110mA
	Battery Performance	Li-ion Battery
	Battery Capacityl	220 mAh
	Charge time	40 minutes
	Working Time	2 hour
	Dimensions( L X W X H)	54mm X20mm X 11.5mm
	Weight	14g

* Channel Frequency: CH1=2414MHz;CH2=2432MHz;CH3=2450MHz;CH4=2468MHz
