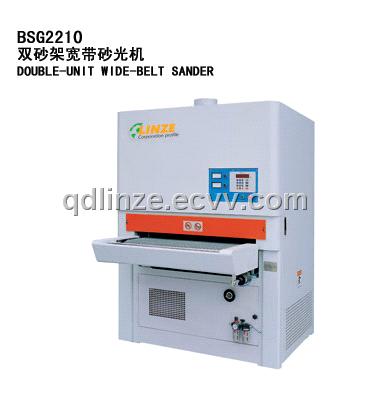

BSG2210 Double-unit wide-belt sander

Detailed Product Description

BSG22

It can sand the following boards intensively or according to the required thickness;solid-wood board,veneer.flakeboard,fiberboard.semi-density flakeboard,affixed flakeboard,semi-density flakeboard,affixed flakeboard,affixed air board,air board,affixed veneer.etc

Technical Data:

NAME	BSG2210A	BSG2210B	BSG2210C	BSG2210D
MAX.WORKING WIDTH	1000mm	1300mm	1300mm	1300mm
Working thickness	2.5-100mm	2.5-80mm	2.5-100mm	2.5-80mm
Size of obrasive belt	1030X2200mm	1030X2200mm	1030X2200mm	1030X2200mm
Working air pressure	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Speed of obrasive belt	20.18m/s	20.18m/s	20.12m/s	20.18/ms
Speed of feed belt	4-30m/min	4-30m/min	4-30m/min	4-30m/min
Total motor power	43.25kw	56-74kw	47-94kw	63-74kw
Overall dimensions(LxWxH)	2100x1500x2100mm	2100x1500x2100mm	2100x1500x2100mm	2100x1500x2100mm
Weight	2800kg	2800kg	2800kg	2800kg
