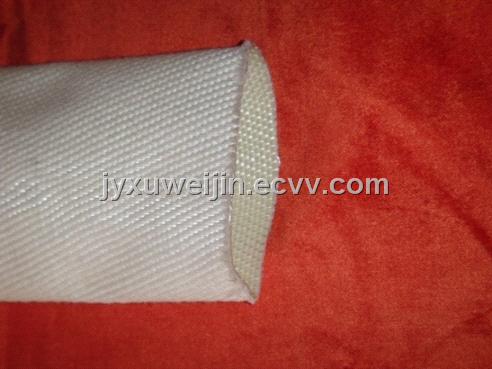

PU lining fire hose

Detailed Product Description

1. Outer Jacket:

A. warp: polyester yarn; weft: polyester silk

B. warp: polyester silk; weft: polyester silk

C. weaving: twill

D. color: upon client’s demand

E. mark: upon client’s demand

2. Inner Lining: poly urethane

color: white, black or red

3. Features: thinner, softer and lighter. Resistant to high pressure. The weight of the unit length is 40% lighter than rubber lining hose.

4. Applications: mining, water transportation, fire fighting, agriculture, etc.

5. Various couplings are available

Working Pressure： 13BAR-30BAR

Testing Pressure: 26BAR-60BAR

Bursting Pressure：39BAR-90BAR

Inner Diameter：3/4"(20mm)－4"(100mm)

Length：10m,15m,20m,25m,30m,35m,40m
