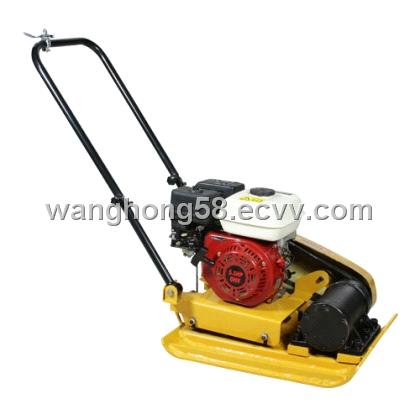

Project Machinery--80G

Model: FT-80G
Frequency (vpm): 5600
Centrifugal force(KN): 13.5
Compaction depth(cm/in): 20（8）
Travel speed (cm/s,in/s): 40（16）
Efficiency (m²/hr,ft²/hr): 450（4800）
Plate size (mm): 600x420
Engine Model: XY168FB
Type: Forced air-cooled,4-stroke,OHV
Displacement(cc): 196
Max.Output(Hp/rpm): 6.5/3600
Fuel: Unleaded Gasoline
Fuel Tank capacity(L): 3.6
Continuous Operating Hours(H): 3
Oil: SAE 10W30(Above CC grade)
Oil capacity(L): 0.6
Ignition System : T.C.I
Starting System: Recoil
Net Dimension LXWXH(mm): 1080x400x800
N.W./G.W.(kg): 64/80
