Precision Manual Surface Grinder

Detailed Product Description

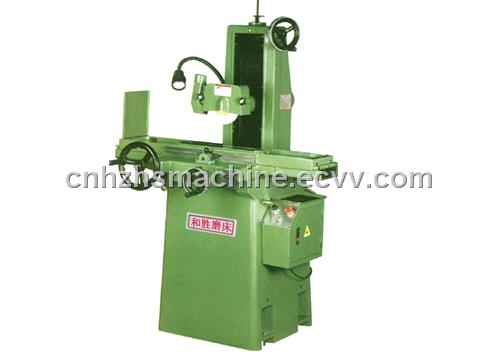

Surface Grinder

Model NO.: HS-618

Specifications:

Max. Grinding length: 470mm

Max. Grinding width: 160mm

Max. Distance wheel spindle to table surface: 400mm

Table Size(L×W): 400×150mm

Max. Travel of table(L to R): 480mm

Max. Travel of saddle(F to B): 177mm

Wheel Motor(V-3 Grade): 1.5HP×2P

Wheel Speed(Max.): 3000r.p.m

Wheel Diameter: Φ180mm

Wheel Thickness: 13mm

Wheel Center Bore: Φ31.75mm

Feed of table handwheel: 105mm/rev.

Feed of saddle handwheel: 5mm/rev. 0.02mm/gra.

Feed of vertical handwheel: 1mm/rev 0.005mm/gra.

Machine Dimensions(L×W×H): 1200×1000×1800mm

Machine Weight(approx.): 730kgs
